Product Specification Sheet
eDGe Product Specification
enee.io Data Gateway and energy monitoring system.

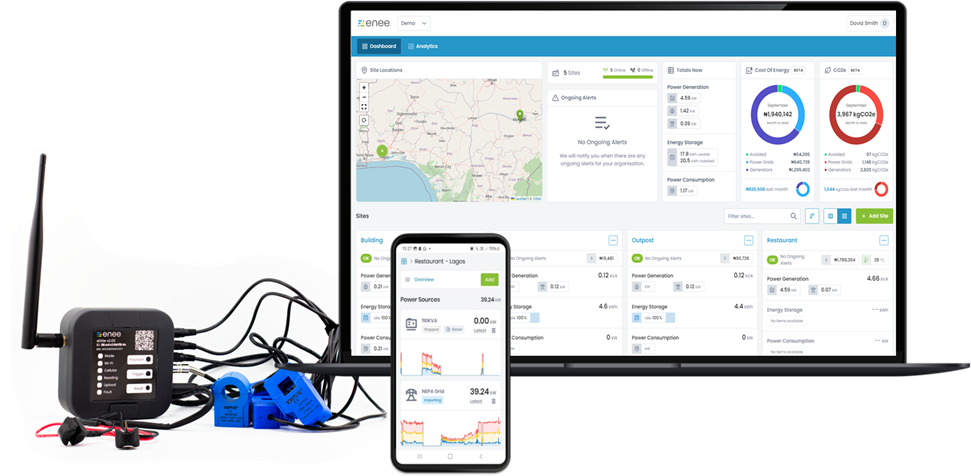

The eDGe Data Gateway is a core component of the enee.io energy monitoring system. This compact, plug-and-play device collects data from enee.io monitors — wired or wireless — and transmits it securely to the enee.io cloud platform via built-in 4G or Wi-Fi.
Whether you're monitoring a single backup system or a complex distributed energy setup, the eDGe offers flexible, reliable performance to keep you connected to your power — monitor any energy system, anywhere.
Whether you're monitoring a single backup system or a complex distributed energy setup, the eDGe offers flexible, reliable performance to keep you connected to your power — monitor any energy system, anywhere.
- Robust data communication via 4G or Wi-Fi
- 24 hour battery backup
- Inbuilt memory storage
- ‘plug-and-play’ - Simple onsite setup
- DC or AC powered
- Sensors per eDGe
- Up to 3 wired AC current
- 1 DC current + voltage
- Combine with additional wireless Bluetooth sensors
- Inbuilt ambient temperature sensor

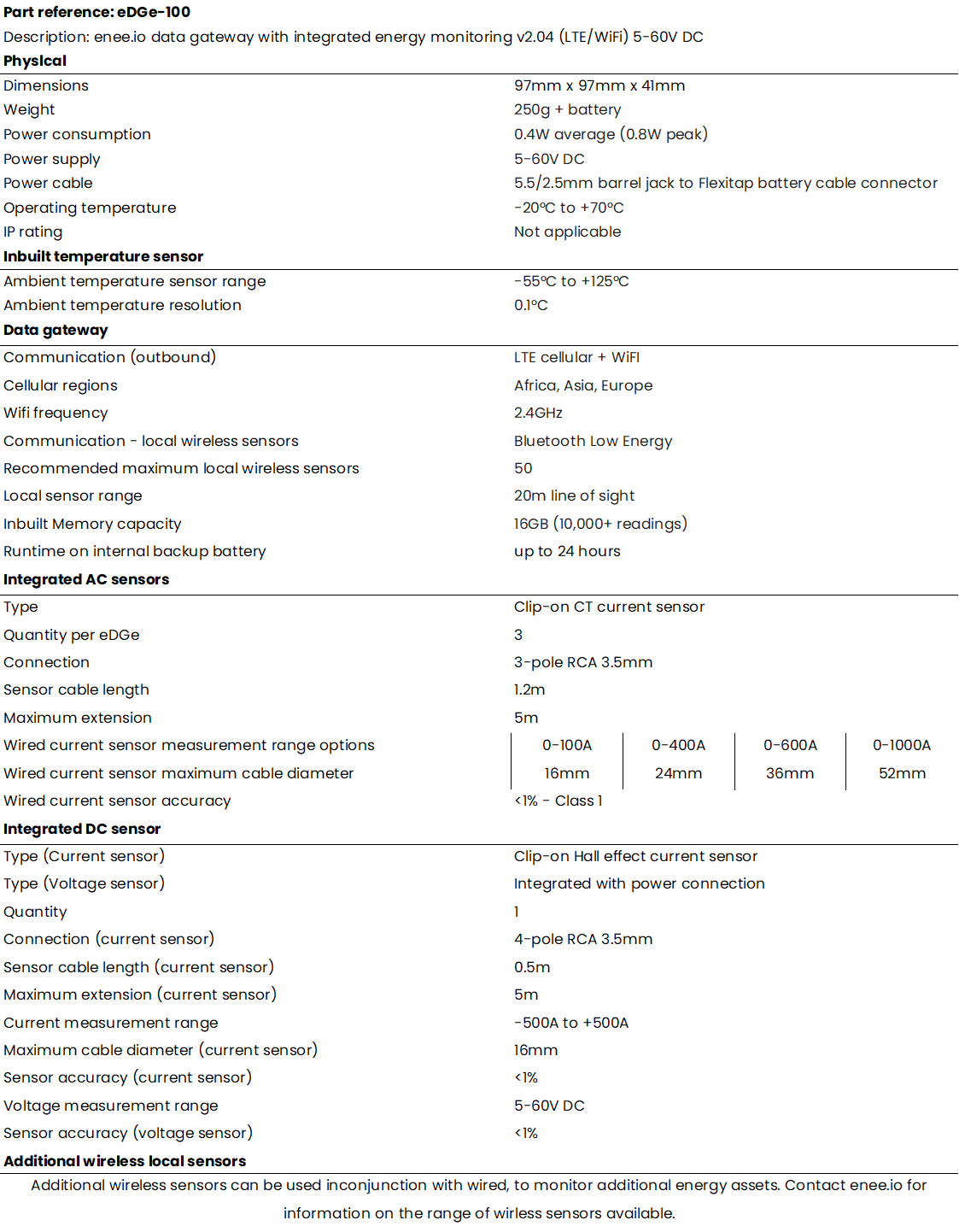

Product Specification
