Hardware Information Sheet

Hardware Information Sheet

System Hardware

Standard system components for eDGe

Notes:
  1. Images are not to scale
  2. Larger current clamp sizes/ratings available upon request


 eDGe01-100

eDGe-data gateway-WiFi-4G-Includes inbuilt SIM and aerial. Maximum 3 x AC current monitors and 1 x DC current and voltage. (requires power supply - DC (eComp-DCV) or AC (eCAB-003).)


eCOMP-AC100/16

Wired AC current monitor for eDGe, 100amp, max. 16mm cable diameter. 1m connection cable


eCOMP-AC400/24

Wired AC current monitor for eDGe, 400amp, max. 24mm cable diameter. 1m connection cable.


eCOMP-AC600/36

Wired AC current monitor for eDGe, 600amp, max. 36mm cable diameter. 1m connection cable.


eCOMP-AC1000/52

Wired AC current monitor for eDGe, 1000amp, max. 53mm cable diameter. 1m connection cable.


eComp-DC500/16

Wired DC current monitor for eDGe, 500amp, max. mm cable diameter. 1m connection cable.


eComp-DCV

Wired DC battery voltage cables - FlexiTap - 1m cable length.


eCOMP-PS-UK-12v

eDGe Power supply-DC plug-UK-12v


Additional independent Bluetooth energy monitors


eME01-1P-AC100/16
Bluetooth, single phase AC current monitor, 100amp, max. 16mm cable diameter.
eME01-1P-AC400/24
Bluetooth, single phase AC current monitor, 400amp, max. 24mm cable diameter.
eME01-1P-AC600/36
Bluetooth, single phase AC current monitor, 600amp, max. 36mm cable diameter.
eME01-1P-AC1000/52
Bluetooth, single phase AC current monitor, 1000amp, max. 52mm cable diameter.

eME01-DC500/16
Bluetooth, DC current and voltage monitor, 600amp, 0-120v dc, max. 24mm cable diameter.

Miscellaneous power and extension leads


eCAB-002

eDGe - DC voltage extension lead - 2.1mm barrel connectors - 3m cable length


eCAB-003

eDGe - DC power lead-USB-5.5mm-2.1mm barrel - 1m cable length


eCAB-004

eDGe - DC current extension lead 4-pole 3.5mm - 2m cable length


eCAB-005

eDGe - AC current extension lead 3-pole 3.5mm - shielded - 2m cable length


eCAB-006

eDGe - 3.5mm to USB 5V power output for powering independent eME-AC/eME-DC, 2m cable length


eCAB-007

eDGe - USB 1-4 splitter lead for powering independent eME-AC or eME-DC


eCAB-008

Mains plug UK - 2 x USB


eCAB-009

USB to USB extension cable 2m


Independent Lead acid battery monitors


eMB01-1B-##

Lead-Acid battery monitor, 1 per battery, volt, temp, load balancing. M8 or Flexi-Tap connectors.

eMB01-2B-##

Lead-Acid battery monitor, Split-Tap, 1 for multiple batteries, volt, temp, load balancing. M8 or Flexi-Tap connectors.


System Components

eDGe Standard Components

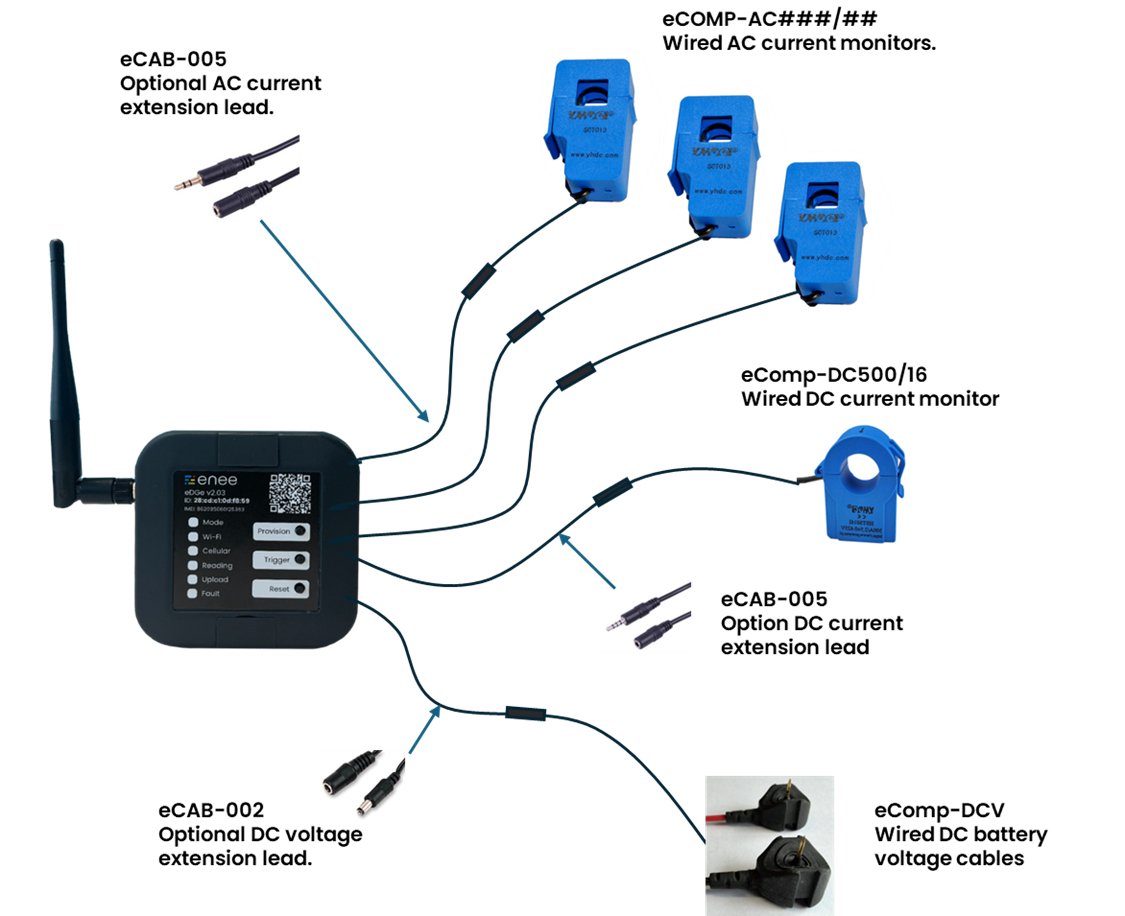

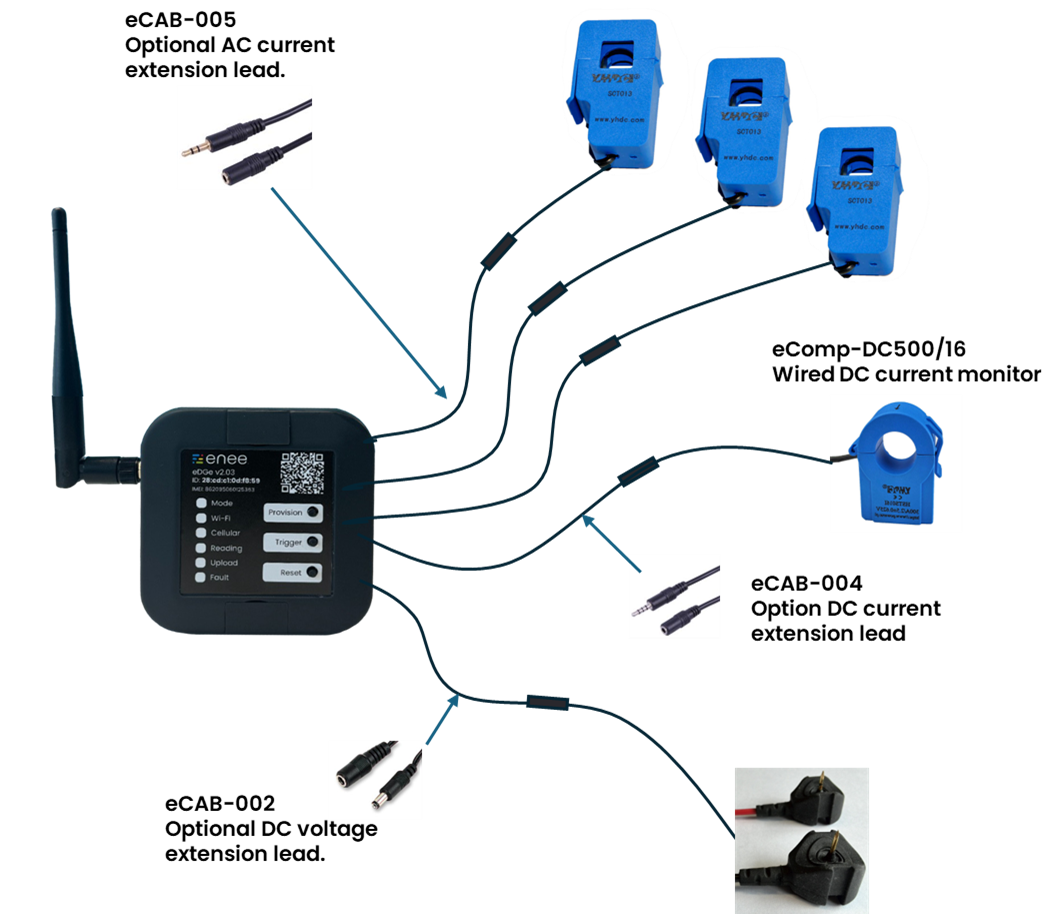

The following schematic shows the standard components for the eDGe and  optional miscellaneous power and extension leads.

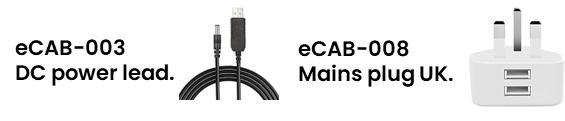

Powering eDGe from mains wall socket

If no battery monitoring is required, then use eCAB-003 and eCAB-008 for powering the eDGe from mains power socket.

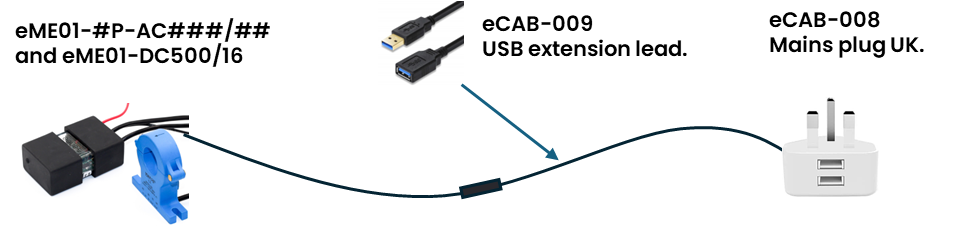

Powering independent Bluetooth energy monitors

The independent Bluetooth energy monitors eME01-#P-AC###/## and eME01-DC500/16 are powered from a mains power socket and require eCAB-008 mains plug and optional eCAB-009 USB extension cables.


Country of Origin and Harmonized Codes

  1. Country of origin: The enee.io Energy Monitoring System is manufactured in the United Kingdom
  2. Applicable harmonized code
    1. Subheading: 903031
    2. Classification: Other instruments and apparatus, for measuring or checking voltage, current, resistance or power (other than those for measuring or checking semiconductor wafers or devices)
