General

Following are examples for the deployment of the enee.io hardware on different configurations of energy systems.
These are for illustration only, please check with enee.io or an approved enee.io partner for your actual requirements.

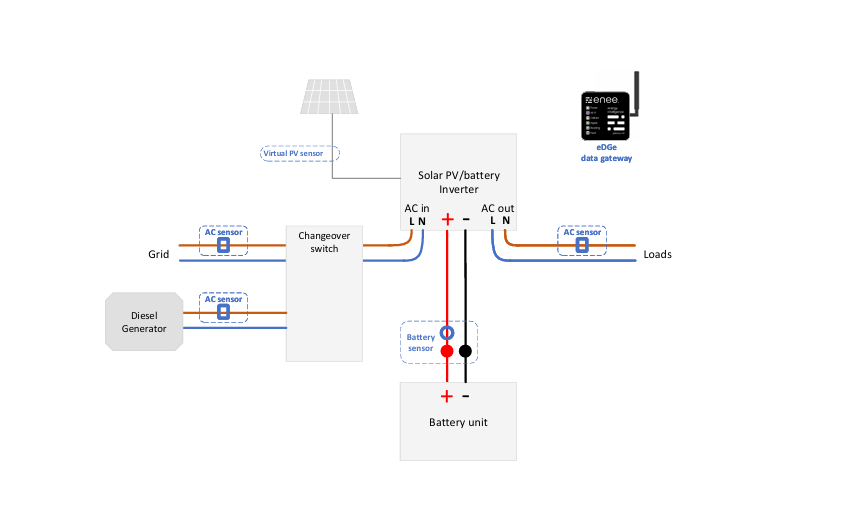

Example 1 - Single-phase grid/DG/solar/battery system

  1. For the below configuration, the PV is calculated by the enee.io online system, based on direct measurement of all other inputs and outputs.

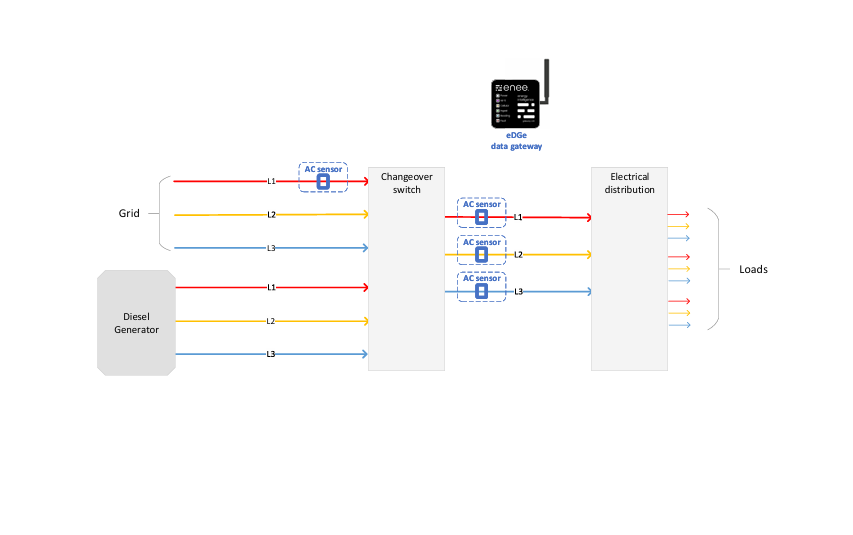

Example 2 -  3-phase Grid/DG/changeover system

  1. For the below configuration, enee.io utilises an algorithm to determine the generation source, by direct measurement of the output from the changeover switch and 1 phase from the 2 inputs.

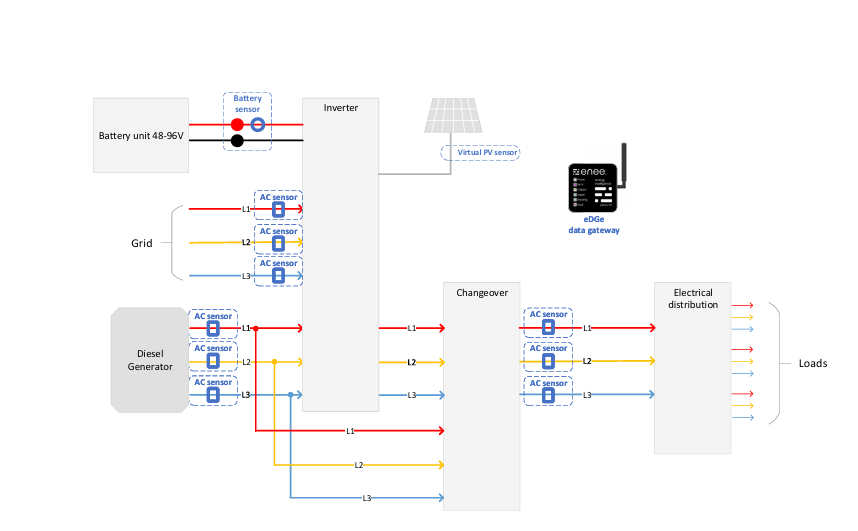

Example 3 -  3-phase Grid/DG/solar/battery system

  1. For the below configuration, the PV is 'calculated' by the enee.io online system, based on direct measurement of all other inputs and outputs.

Example 4 -  3-phase Grid/DG; single-phase solar/battery system

  1. For the below configuration, the PV is 'calculated' by the enee.io online system, based on direct measurement of all other inputs and outputs.
  2. The load is calculated by combining the total from all inputs including from the battery bank.

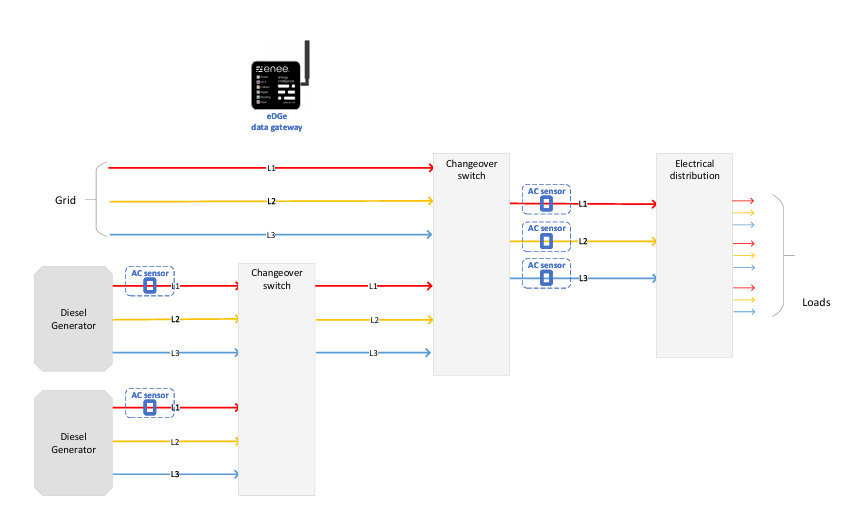

Example 5 -  3-phase Grid/2xDG/changeover system

  1. For the below configuration, enee.io utilises an algorithm to determine the generation source, by direct measurement of the output from the changeover switch and 1 phase from 2 of the 3 energy inputs.

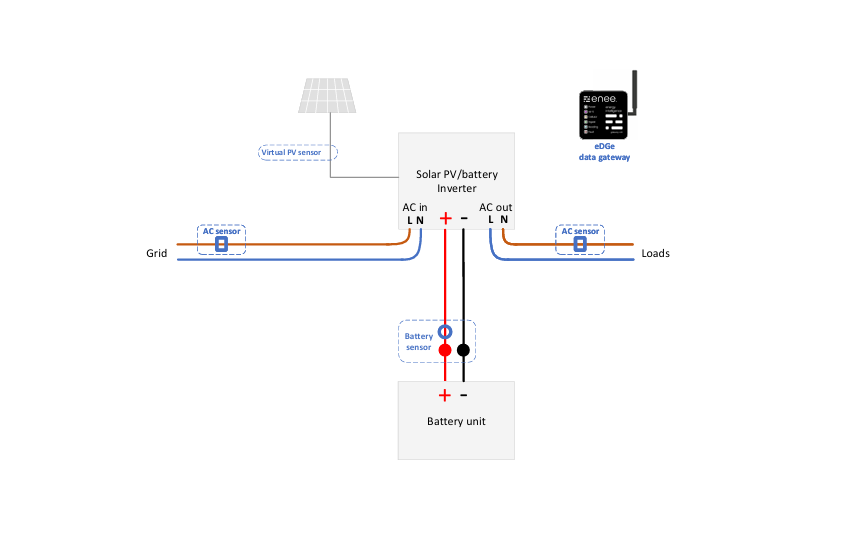

Example 6 -  Single-phase grid/solar/battery system

  1. For the below configuration, the PV is 'calculated' by the enee.io online system, based on direct measurement of all other inputs and outputs.

Example 7 -  micro/mini grid system

  1. For the below configuration, the load is calculated by combining the total from all inputs including from the battery bank.

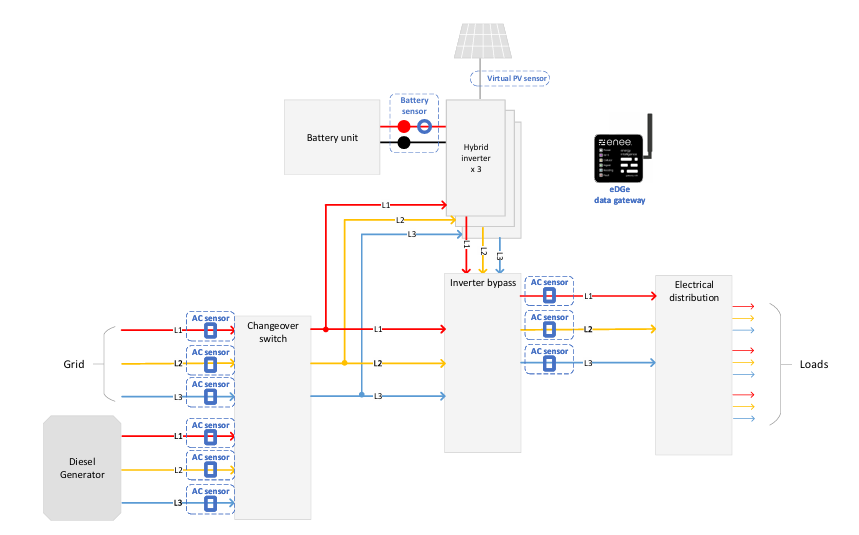

Example 8 -  micro/mini grid system hybrid inverters

  1. For the below configuration, the load is calculated by combining the total from all inputs.

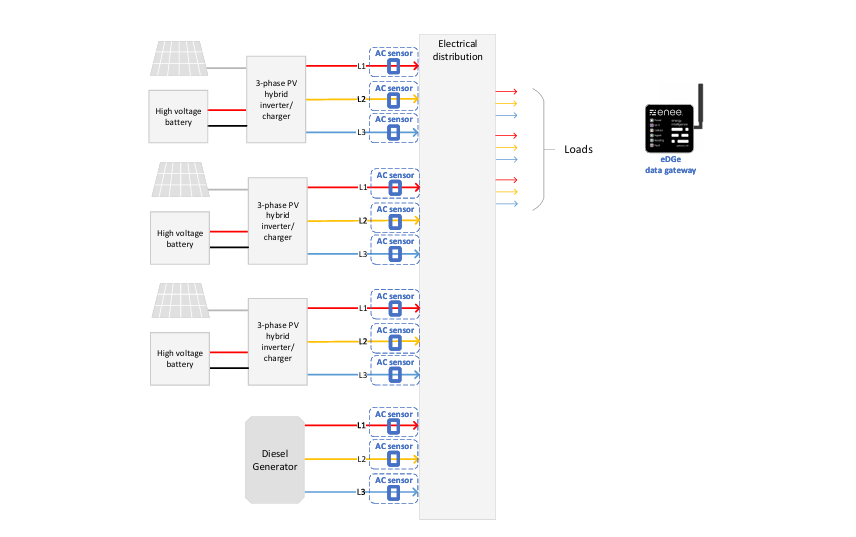

Example 9 -  3-phase Grid/DG/solar/battery hybrid system

  1. For the below configuration, the PV is 'calculated' by the enee.io online system, based on direct measurement of all other inputs and outputs.
